Sphere Latent Encoder

ImageNet-1K generated samples with 4-step sampling.

6-step image generation on ImageNet-1K

1 / 5

Abstract

Few-step image generation has seen rapid progress, with consistency and meanflow-based methods significantly reducing the number of sampling steps. Despite their low inference cost, these approaches often suffer from training instability and limited scalability. Sphere Encoder is a recent alternative that produces high-quality images in only a few steps; however, it requires repeated transitions between pixel space and latent space during inference while jointly optimizing reconstruction and generation within a single architecture.

We decouple the framework into a fixed pretrained image encoder and a separate latent denoising model trained entirely in a spherical latent space. This eliminates repeated pixel-space operations during training and inference, improving efficiency and allowing reconstruction and generation to specialize independently. On Animal-Faces, Oxford-Flowers, and ImageNet-1K, our method significantly outperforms Sphere Encoder in generation quality and inference speed while remaining competitive with strong few-step and multi-step baselines.

Why Sphere Latent Encoder?

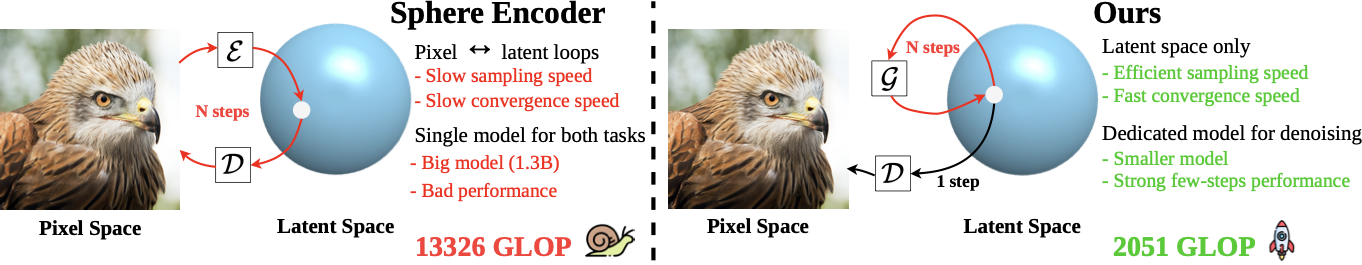

Comparison between Sphere Encoder and Sphere Latent Encoder

Left: Sphere Encoder repeatedly encodes and decodes during generation. Right: our method denoises only in latent space and decodes once at the end.

Decoupled

Separate reconstruction and generation

A pretrained RAE acts as a fixed image tokenizer, while a dedicated transformer learns latent denoising.

Efficient

Denoising in latent space

Sampling refines compact spherical latents directly, avoiding expensive pixel-space denoising at each step.

Stable

No JVP objective

The model learns direct denoising on the hypersphere instead of relying on first-order approximation losses.

Method

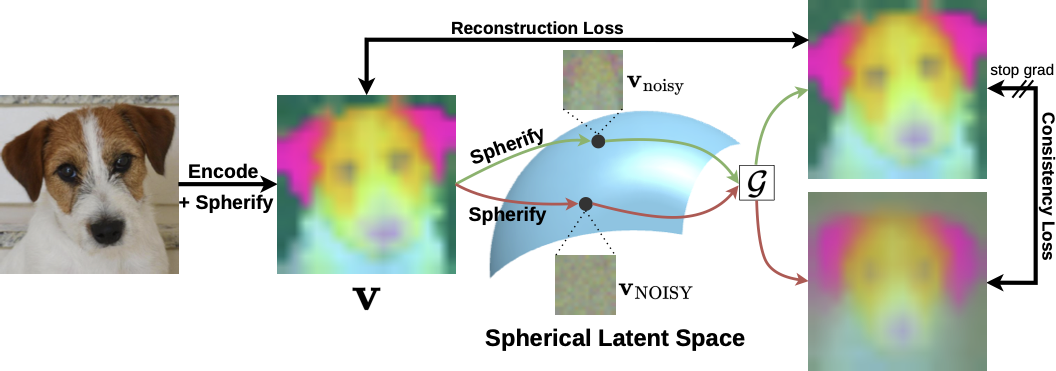

Overview of the Sphere Latent Encoder training framework

Training objective overview. Noisy spherical latents are denoised with reconstruction and consistency losses.

Latent denoising model

A pretrained representation autoencoder maps an image \(x \in \mathbb{R}^{256 \times 256 \times 3}\) to a latent \(z \in \mathbb{R}^{16 \times 16 \times 768}\). We corrupt the latent with Gaussian noise, project it onto the hypersphere, and train a SiT-style transformer \(\mathcal{G}\) to predict the clean latent.

Few-step latent sampling

Sampling starts from Gaussian noise. Each step projects the current latent to the sphere, denoises it, optionally applies classifier-free guidance, reprojects, and adds decayed noise. The decoder runs only once.

Training losses

Reconstruction loss. Given a noisy spherical latent \(\mathbf{v}_{\text{noisy}}\), the denoiser \(\mathcal{G}\) predicts a clean latent. We align this prediction with the clean RAE latent \(\mathbf{z}\) using both an \(\ell_1\) distance and a cosine-similarity loss.

\[ \mathcal{L}_{\text{recon}} = \left\| \mathcal{G}(\mathbf{v}_{\text{noisy}}) - \mathbf{z} \right\|_1 + \mathcal{L}_{\text{cosine}}\left( \mathcal{G}(\mathbf{v}_{\text{noisy}}), \mathbf{z} \right) \]

Consistency loss. We denoise two spherical latents from different noise levels: \(\mathbf{v}_{\text{NOISY}}\) is more corrupted, while \(\mathbf{v}_{\text{noisy}}\) is less corrupted. The lower-noise prediction is treated as a fixed target with stop-gradient \(\mathrm{sg}(\cdot)\), encouraging high-noise predictions to match the cleaner prediction.

\[ \mathcal{L}_{\text{cons}} = \left\| \mathcal{G}(\mathbf{v}_{\text{NOISY}}) - \mathrm{sg}\left(\mathcal{G}(\mathbf{v}_{\text{noisy}})\right) \right\|_1 + \mathcal{L}_{\text{cosine}}\left( \mathcal{G}(\mathbf{v}_{\text{NOISY}}), \mathrm{sg}\left(\mathcal{G}(\mathbf{v}_{\text{noisy}})\right) \right) \]

Few-step Generation Results

Sphere Latent Encoder ImageNet four step qualitative samples

Ours, ImageNet-1K, 4-step generation.

Animal-Faces and Oxford-Flowers

Model	Data	Param	FID@2	FID@4	FID@6	G@2	G@4	G@6
Sphere Enc.	AF	642M	19.29	18.23	17.97	1965	4554	7144
Ours	AF	130M	10.63	6.89	6.18	302	390	478
Sphere Enc.	OF	948M	16.60	12.96	12.26	3932	9118	14300
Ours	OF	130M	12.22	8.61	7.85	390	567	743

G = GFLOPs. Lower is better.

ImageNet: 1-NFE + Sphere

Model	Param	NFE	FID	CMMD
1-NFE diffusion / flow
MeanFlow-XL/2	676M	1	3.43	0.575
\(\alpha\)-Flow-XL/2+	676M	1	2.58	0.520
iMF-XL/2	610M	1	1.72	0.384
Sphere models
Sphere Enc.	1.3B	\(4\times2\)	4.02	0.363
Ours-XL/1	675M	\(4\times2\)	2.25	0.144
Ours-XL/1	675M	\(6\times2\)	2.11	0.147

ImageNet: Multi-NFE

Model	Param	NFE	FID	CMMD
Multi-NFE diffusion / flow
SiT-XL/2 + REG	675M	\(250\times2\)	1.36	0.228
LightningDiT-XL/2	675M	\(250\times2\)	1.35	0.139
REPA-E	675M	\(250\times2\)	1.15	0.115
GAE	675M	\(250\times2\)	1.13	0.053
RAE+DiT-XL	839M	\(50\times2\)	1.13	0.169

Ablation Studies

We compare noise schedules for sampling \(\sigma\) and \(\sigma_{sub}\). A stronger log-normal schedule improves coverage of noisy spherical latents and gives the best ImageNet-100 FID.

Data	Setting	FID	Impr.
IN-100	Baseline	6.43	-
IN-100	Uniform	5.79	10.0%
IN-100	LogNorm \(-0.4, 1.0\)	5.56	13.5%
IN-100	LogNorm \(+0.4, 1.0\)	5.31	17.4%

We study how reconstruction and consistency objectives contribute to denoising. Consistency strongly improves FID, while the additional latent consistency term is less effective after fine-tuning.

Data	Setting	FID	Impr.
IN-100	R	8.97	-
IN-100	R + C	5.31	40.8%
IN-100	R + C + L*	4.82	46.3%
IN-100	R + C*	4.68	47.8%

R = reconstruction, C = consistency, L = latent consistency. * continued fine-tuning.

Spherical projection is essential. Removing the spherify operation causes the denoiser to fail, showing that the structured hyperspherical latent space is central to the method.

Data	Setting	FID	Impr.
IN-100	w/o spherify	89.68	-
IN-100	w/ spherify	4.68	1816.2%

Sampling quality improves as the denoising process is repeated. Most of the gain appears from 2 to 4 steps, with smaller but still visible improvement at 8 steps.

Data	Steps	FID	Impr.
IN-100	2	12.47	-
IN-100	4	4.90	60.7%
IN-100	8	4.13	66.9%

2-step sampling

FID 12.47. Increasing sampling steps improves fidelity.

The latent tokenizer strongly affects generation. RAE provides semantically rich, high-dimensional latents, producing much better samples than compact VAE-style representations.

Data	Setting	FID	Impr.
AF	FLUX VAE	172.25	-
AF	GAE	23.26	86.5%
AF	RAE	10.63	93.8%

FLUX VAE

FID 172.25. Low-dimensional VAE latents produce weak samples.

More Qualitative Results

4-step samples

1 / 5

class 0002: great white shark, white shark
